If you’ve ever cracked open a smartphone, poked around inside a smartwatch, or worked on medical device electronics, you’ve seen flexible PCBs in action. These thin, bendable circuits have become the backbone of modern compact electronics, and for good reason. They solve problems that rigid boards simply can’t handle.
I’ve spent years working with flex circuits across various applications, from consumer wearables to aerospace systems. What I’ve learned is that success with flexible PCB design comes down to understanding a few critical areas: getting the design rules right, choosing appropriate materials, planning your stack-up carefully, and managing costs without sacrificing reliability.
This guide breaks down everything engineers need to know about flexible PCB technology in 2025. Whether you’re designing your first flex circuit or optimizing an existing product, you’ll find practical information you can apply immediately.
A flexible PCB (also called FPC, flex circuit, or flexible printed circuit board) is built on a thin, pliable substrate instead of the rigid fiberglass used in traditional FR4 boards. The base material, typically polyimide, allows the circuit to bend, fold, and twist while maintaining electrical connections.
The key distinction isn’t just physical flexibility. Flexible PCB technology enables three-dimensional circuit routing, eliminates connectors between board sections, and survives in applications where vibration would destroy rigid assemblies. Modern smartphones contain 15-20 individual flex circuits connecting displays, cameras, batteries, and antennas in spaces too tight for any other solution.

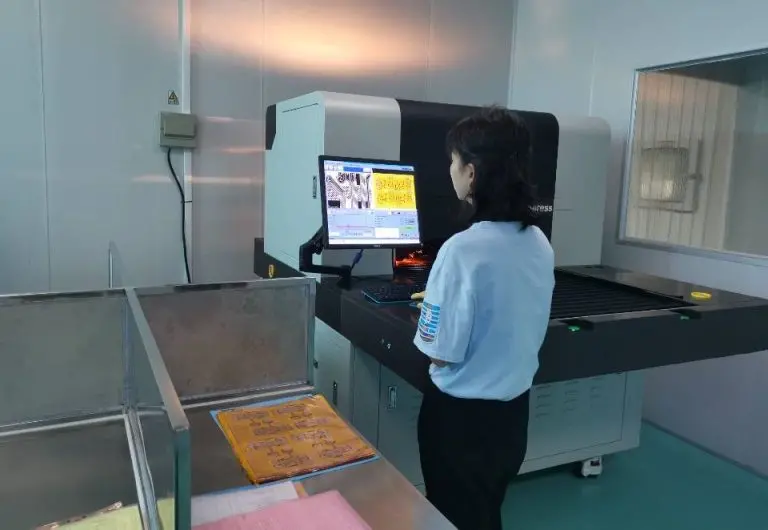

Every flexible PCB consists of these fundamental layers:
|
Component |
Material Options |
Typical Thickness |
Function |
|
Base Substrate |
Polyimide (PI), Polyester (PET) |
12.5μm – 125μm |
Provides flexibility and insulation |
|
Conductor |
Rolled Annealed (RA) or Electrodeposited (ED) Copper |
9μm – 70μm (1/4oz – 2oz) |
Carries electrical signals |
|
Adhesive |
Acrylic, Epoxy, or Adhesiveless |
12μm – 25μm |
Bonds copper to substrate |
|
Coverlay |
Polyimide film with adhesive |
12.5μm – 50μm |
Protects conductors |
|
Stiffener |
FR4, Polyimide, Steel, Aluminum |
0.1mm – 1.6mm |
Supports component mounting areas |
